Degradation Modelling with SurPyval

Sometimes failure data is scarce or takes too long to collect: items are highly reliable, test time is limited, and few (or no) units fail during the observation window. But failure is often the end point of a gradual, measurable process — a crack grows, a resistance drifts, a lumen output fades, a material wears. Degradation analysis exploits this: instead of waiting for units to fail, we track a degradation measurement over time on each unit, define failure as the measurement crossing a threshold, and work out the failure-time distribution from how the measurements evolve — even for units that never actually failed on test.

This page shows how to do all of it with SurPyval, with runnable examples. The concepts and the mathematics behind each model — why it works, what it assumes, how it is estimated — are on the Degradation Analysis page, which follows the same order; it is worth reading the matching section there alongside each section here.

What is on this page

There are three families of model, each a fitter whose fit returns a fitted model object:

Fitter	Returns	Use when
DegradationAnalysis	DegradationModel	each unit is measured repeatedly and follows a smooth trend (the general-path model) — with optional stress effects
WienerProcess, GammaProcess	WienerProcessModel, GammaProcessModel	each unit is measured repeatedly and its degradation wanders randomly (a stochastic process)
DestructiveDegradation	DestructiveDegradationModel	each unit can be measured only once

The page covers, in order: the general-path model (fitting, predicting a new unit, the population of paths, the induced life, confidence bounds), accelerated tests for it in three steps of increasing detail — stress on the life, stress on the path parameters, and stress on the clock (which handles step-stress tests) — with a summary of which to use, the stochastic-process models (with their own stress support), destructive degradation, and saving a fitted model.

The data

Repeated-measures degradation data comes in long format: three arrays of the same length, one entry per measurement,

• x — the time of the measurement (hours, cycles, days, …),

• y — the degradation measured,

• i — which unit it belongs to (any hashable labels).

Units need not be measured at the same times or the same number of times. An accelerated test adds a fourth array, Z, holding the stress for each measurement; that is described in Accelerated degradation testing (covariates).

Here is the data used for the next several sections: twelve units inspected every 100 hours, each drifting upward at its own rate from its own starting level, with measurement noise. A unit fails when its measurement reaches 450.

import warnings

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from surpyval.degradation import DegradationAnalysis

rng = np.random.default_rng(1)
times = np.arange(100.0, 1100.0, 100.0)       # an inspection every 100 h
xs, ys, ids = [], [], []
for unit in range(12):
    a = rng.normal(10.0, 3.0)                 # this unit's starting level
    b = rng.normal(0.30, 0.06)                # this unit's rate per hour
    xs.append(times)
    ys.append(a + b * times + rng.normal(0, 3.0, times.size))  # + noise
    ids.append(np.full(times.size, unit))
x, y, i = (np.concatenate(v) for v in (xs, ys, ids))

pd.DataFrame({"x": x, "y": y, "i": i}).head(12)

	x	y	i
0	100.0	46.957773	0
1	200.0	76.986699	0
2	300.0	118.541947	0
3	400.0	152.094712	0
4	500.0	184.074437	0
5	600.0	222.358360	0
6	700.0	256.638432	0
7	800.0	291.356821	0
8	900.0	325.489399	0
9	1000.0	361.973980	0
10	100.0	35.366820	1
11	200.0	67.632257	1

Degradation path models

The path model is the shape fitted to each unit’s measurements. The path models available, and the pseudo failure time each implies for a threshold \(y_{t}\), are:

Name	Path	Threshold crossing time
"linear"	\(y = a + b x\)	\((y_{t} - a) / b\)
"quadratic"	\(y = a + b x + c x^{2}\)	first positive root of \(c t^{2} + b t + (a - y_{t})\)
"exponential"	\(y = a e^{b x}\)	\(\ln(y_{t} / a) / b\)
"offset-exponential"	\(y = a + b e^{c x}\)	\(\ln((y_{t} - a) / b) / c\)
"power"	\(y = a x^{b}\)	\((y_{t} / a)^{1/b}\)
"logarithmic"	\(y = a + b \ln(x)\)	\(e^{(y_{t} - a) / b}\)
"lloyd-lipow"	\(y = a - b / x\)	\(b / (a - y_{t})\)
"gompertz"	\(y = a e^{-b e^{-c x}}\)	\(-\ln(-\ln(y_{t}/a)/b) / c\)
"michaelis-menten"	\(y = a x / (b + x)\)	\(b y_{t} / (a - y_{t})\)

Degradation can be increasing (crack length) or decreasing (luminous flux); the direction is captured by the sign of the fitted parameters and needs no configuration. Models that are linear in their parameters (linear, quadratic, logarithmic, Lloyd-Lipow) are fitted in closed form; the others are fitted by nonlinear least squares started from a linearised fit. The offset-exponential covers growth or decay toward an asymptote (a = 0 reduces it to the exponential); Gompertz is S-shaped; Michaelis-Menten saturates from zero toward a. Some paths need positive data — the exponential, power, Gompertz and Michaelis-Menten need positive measurements, and the power, logarithmic, Lloyd-Lipow and Michaelis-Menten need positive times — and say so if they do not get it.

Pass the name as path ("linear" is the default). Not sure which shape fits? Pass path="best": every registered path model is fitted to every unit and the one with the smallest AICc (pooled over all units, penalising the per-unit parameter count) is selected:

best = DegradationAnalysis.fit(x, y, i, threshold=450.0, path="best")
print("selected:", best.path_model.name)
{name: round(score, 1) for name, score in best.path_selection.items()}

selected: Linear

{'Linear': np.float64(271.3),
 'Quadratic': np.float64(296.2),
 'Exponential': np.float64(758.6),
 'Offset Exponential': np.float64(296.3),
 'Power': np.float64(294.1),
 'Logarithmic': np.float64(846.2),
 'Lloyd-Lipow': np.float64(1003.3),
 'Gompertz': np.float64(436.0),
 'Michaelis-Menten': np.float64(343.7)}

Candidates that cannot be fitted to every unit — domain violations such as negative measurements for the exponential, too few distinct measurement times for their parameter count, or non-convergence — are excluded and score nan. The selection is by measurement fit only; as always, prefer a shape with physical justification when one is known, since the winner is extrapolated well beyond the data.

A custom path. When the physics suggests a shape that is not in the list, subclass PathModel: give it a name, its parameter_names, the path itself and its inverse inv_path (the time the path reaches a level, nan or non-positive if it never does). fit defaults to nonlinear least squares from an _initial_guess you supply; a path that is linear in its parameters can instead set linear_in_parameters = True and provide a closed-form fit and its (constant) jacobian, which also makes the population estimates below exact. The jacobian (the derivatives of the path with respect to its parameters, used for the estimation covariances, the Bayesian update and REML) otherwise defaults to central finite differences, and an optional check_data(x, y) can reject data outside the path’s domain with a clear message. The built-in shapes are importable objects too (LinearPath, GompertzPath, …, and the name-to-object mapping PATH_MODELS in surpyval.degradation), so path=GompertzPath is the same as path="gompertz". Here is a diffusion-limited, square-root path:

from surpyval.degradation import PathModel

class SquareRootPath(PathModel):
    """y = a + b * sqrt(x): diffusion-limited growth."""

    name = "Square-root"
    parameter_names = ["a", "b"]
    linear_in_parameters = True

    def path(self, x, a, b):
        return a + b * np.sqrt(np.asarray(x, dtype=float))

    def inv_path(self, y, a, b):
        with np.errstate(divide="ignore", invalid="ignore"):
            return ((np.asarray(y, dtype=float) - a) / b) ** 2

    def jacobian(self, x, *params):
        x = np.asarray(x, dtype=float)
        return np.column_stack([np.ones_like(x), np.sqrt(x)])

    def fit(self, x, y):
        design = np.column_stack([np.ones(len(x)), np.sqrt(x)])
        return np.linalg.lstsq(design, np.asarray(y, dtype=float),
                               rcond=None)[0]

# each unit with its own start and rate, as before
rng_sq = np.random.default_rng(3)
start = np.repeat(rng_sq.normal(10.0, 5.0, 12), times.size)
rate = np.repeat(rng_sq.normal(9.0, 1.0, 12), times.size)
y_sqrt = start + rate * np.sqrt(x) + rng_sq.normal(0, 2.0, x.size)
sqrt_model = DegradationAnalysis.fit(x, y_sqrt, i, threshold=450.0,
                                     path=SquareRootPath())
sqrt_model.pseudo_failure_times[:4].round(0)

array([2427., 2975., 3035., 2642.])

Example

Fit the linear path to the twelve units above:

model = DegradationAnalysis.fit(x, y, i, threshold=450.0)
model

Degradation Analysis SurPyval Model
===================================
Path Model          : Linear
Threshold           : 450.0
Number of Units     : 12
Censored Units      : 0
Life Distribution   : Weibull
Parameters          :
     alpha: 1732.3898566549321
      beta: 4.2041540575790455

The summary names the path model and the lifetime distribution fitted to the pseudo failure times (Weibull by default) with its parameters. Everything the three steps produced is on the model:

print("pseudo failure times:", model.pseudo_failure_times.round(0))
print("censored (1) or not :", model.c)
print("unit 0's fitted a, b:", model.path_params[0].round(4))

pseudo failure times: [1252. 1512. 2361. 2199. 1244. 1383. 1293. 1289. 1461. 1481. 2082. 1390.]
censored (1) or not : [0 0 0 0 0 0 0 0 0 0 0 0]
unit 0's fitted a, b: [10.6254  0.3509]

model.path(t, unit) evaluates a unit’s fitted path, and model.plot() draws every unit’s data and fitted path, extended to its pseudo failure time, against the threshold:

model.plot()

<Axes: xlabel='Time', ylabel='Degradation'>

The usual lifetime functions — sf, ff, df, hf, Hf, qf, mean, random — are forwarded to the fitted life model, which is also available directly as model.life_model (an ordinary SurPyval parametric model):

print("reliability at 1000, 1500, 2000 h:", model.sf([1000.0, 1500.0, 2000.0]).round(3))
print("B10 and median life              :", model.qf([0.1, 0.5]).round(0))
print("mean life                        :", round(float(model.mean()), 0))

reliability at 1000, 1500, 2000 h: [0.906 0.579 0.161]
B10 and median life              : [1014. 1588.]
mean life                        : 1575.0

Units that never reach the threshold. Add a thirteenth unit that is not degrading — its reading drifts slightly down. Its fitted path never reaches 450, so it has no pseudo failure time; it is treated as right censored at its last measurement, which the life fit takes into account, and a warning says which unit it was:

x_flat = np.concatenate([x, times])
y_flat = np.concatenate([y, 12 - 0.005 * times + rng.normal(0, 1.0, times.size)])
i_flat = np.concatenate([i, np.full(times.size, 99)])

with warnings.catch_warnings(record=True) as caught:
    warnings.simplefilter("always")
    with_flat = DegradationAnalysis.fit(x_flat, y_flat, i_flat, threshold=450.0)
print(caught[0].message)
print("censored flags:", with_flat.c)

The fitted degradation path(s) of unit(s) [99] never reach the threshold 450.0; these units are treated as right censored at their last observed time
censored flags: [0 0 0 0 0 0 0 0 0 0 0 0 1]

The opposite case is a unit that is already past the threshold at its first measurement — its fitted path crossed 450 at or before time zero. It has failed, only we do not know when, so it is left censored at its first measurement time (flag -1), again with a warning; the summary counts it as “Failed Before Start”. Which side of the threshold counts as failed is read from the units that do cross it, so the flat unit above, trending away on the good side, still never reaches it:

x_early = np.concatenate([x, times])
y_early = np.concatenate([y, 470 + 0.3 * times + rng.normal(0, 1.0, times.size)])
i_early = np.concatenate([i, np.full(times.size, 98)])

with warnings.catch_warnings(record=True) as caught:
    warnings.simplefilter("always")
    with_early = DegradationAnalysis.fit(x_early, y_early, i_early, threshold=450.0)
print(caught[0].message)
print("censored flags:", with_early.c)

The fitted degradation path(s) of unit(s) [98] are already past the threshold 450.0 at their first measurement (they crossed it at or before time zero); these units are treated as failed by then: left censored at their first measurement time
censored flags: [ 0  0  0  0  0  0  0  0  0  0  0  0 -1]

Decreasing degradation. Nothing changes when the measurement falls toward the threshold instead of rising to it. Here eight LEDs lose light output exponentially from about 100 %, and a lamp has failed once it is below 70 % of its initial output (the “L70” life). The exponential path is \(a e^{bt}\) with a negative rate \(b\), and its crossing time \(\ln(70/a)/b\) is positive because numerator and rate are both negative:

rng_led = np.random.default_rng(7)
hours = np.arange(1000.0, 7000.0, 1000.0)
xs, ys, ids = [], [], []
for lamp in range(8):
    a = rng_led.normal(100.0, 1.0)                  # initial output, %
    b = -abs(rng_led.normal(2.5e-5, 0.5e-5))        # decay rate per hour
    xs.append(hours)
    ys.append(a * np.exp(b * hours) + rng_led.normal(0, 0.3, hours.size))
    ids.append(np.full(hours.size, lamp))
x_led, y_led, i_led = (np.concatenate(v) for v in (xs, ys, ids))

led = DegradationAnalysis.fit(x_led, y_led, i_led, threshold=70.0,
                              path="exponential")
print("fitted decay rates b     :", led.path_params[:, 1].round(7))
print("pseudo L70 lives (hours) :", led.pseudo_failure_times.round(-2))
print("median L70 life (hours)  :", round(float(led.qf(0.5)), -2))

fitted decay rates b     : [-2.56e-05 -2.20e-05 -2.16e-05 -2.34e-05 -2.14e-05 -2.47e-05 -3.47e-05
 -2.94e-05]
pseudo L70 lives (hours) : [13800. 16000. 15500. 15100. 16300. 14400. 10100. 12200.]
median L70 life (hours)  : 14400.0

The test ran for 6000 hours and no lamp got near 70 %, yet every lamp has an L70 estimate — around 14 000 hours, well beyond the data, which is exactly why the choice of path shape matters so much.

Other inputs and options. Data can come straight from a DataFrame with fit_from_df, naming the columns (Z_cols names the stress column(s) for the accelerated models below, and every other fit argument passes through); the life distribution fitted to the pseudo failure times, and its fitting method, can be changed with distribution and how ("MLE" by default, passed on to the distribution’s fit):

from surpyval import LogNormal

df = pd.DataFrame({"hours": x, "resistance": y, "unit": i})
DegradationAnalysis.fit_from_df(
    df, x_col="hours", y_col="resistance", i_col="unit",
    threshold=450.0, distribution=LogNormal,
)

Degradation Analysis SurPyval Model
===================================
Path Model          : Linear
Threshold           : 450.0
Number of Units     : 12
Censored Units      : 0
Life Distribution   : LogNormal
Parameters          :
        mu: 7.338749723600603
     sigma: 0.2193999375369642

Predicting a new unit’s failure time

A fitted model can estimate the failure time of a new, partially observed unit from its degradation trajectory. predict_failure_time fits the model’s path shape to the new measurements and extrapolates to the same threshold; predict_remaining_life subtracts the unit’s age (its last measurement time):

x_new = np.array([100.0, 200.0, 300.0])     # observed for 300 h so far
y_new = np.array([45.0, 70.0, 103.0])

print("failure time  :", round(model.predict_failure_time(x_new, y_new), 0))
print("remaining life:", round(model.predict_remaining_life(x_new, y_new), 0))

failure time  : 1501.0
remaining life: 1201.0

If the fitted path crossed the threshold between time zero and the last measurement, the predicted failure time is in the past and the remaining life is negative. A trajectory already past the threshold at its first measurement returns the non-positive time at which its fitted path crossed. If the new unit’s fitted path never reaches the threshold (it is not degrading), both return nan with a warning. The trajectory needs at least as many measurements as the path has parameters, at two or more distinct times. For a population-level view instead of a per-unit extrapolation, use the fitted life model — e.g. the survival of a unit that has already survived to time a: model.life_model.cs(t, a).

Bayesian remaining-life prediction

predict_failure_time trusts the new unit’s least-squares fit completely — dangerous when the trajectory is short or noisy. predict_rul instead blends the unit’s own trend with the population: the population path-parameter distribution (next section) is the prior, the unit’s measurements are the likelihood, and the Gaussian posterior of the unit’s path parameters is pushed through the threshold crossing by Monte Carlo:

pred = model.predict_rul(x_new, y_new, alpha_ci=0.05, random_state=0)

print("failure time (median)  :", round(pred.failure_time, 0))
print("95% credible interval  :", tuple(round(v, 0) for v in pred.failure_time_interval))
print("remaining life (median):", round(pred.rul, 0))
print("95% credible interval  :", tuple(round(v, 0) for v in pred.rul_interval))
print("P(already failed)      :", pred.prob_failed)
print("P(never fails)         :", pred.prob_never_fails)
print("posterior mean a, b    :", pred.posterior_mean.round(4))

failure time (median)  : 1442.0
95% credible interval  : (1355.0, 1548.0)
remaining life (median): 1142.0
95% credible interval  : (1055.0, 1248.0)
P(already failed)      : 0.0
P(never fails)         : 0.0
posterior mean a, b    : [11.4439  0.3039]

pred is a RULPrediction; pred.samples holds the Monte Carlo failure times (inf for draws whose path never reaches the threshold, so the median or an interval end is inf when that many draws never fail; 0 for draws already past the threshold at the first measurement, which count as failed) and posterior_cov the posterior covariance. alpha_ci sets the interval level, n_samples the number of draws, and random_state makes the draws reproducible.

The point of the prior shows when the trajectory is short. Here is the same unit seen after one, two and three measurements, next to the plain least-squares extrapolation (which needs at least two points):

forecasts = {}
for k in (1, 2, 3):
    p = model.predict_rul(x_new[:k], y_new[:k], random_state=0)
    lo, hi = p.failure_time_interval
    plain = (model.predict_failure_time(x_new[:k], y_new[:k])
             if k >= 2 else float("nan"))
    forecasts[k] = p.failure_time, lo, hi, plain
    print(f"{k} measurement(s): Bayesian {p.failure_time:6.0f} "
          f"({lo:5.0f} to {hi:5.0f})   least squares {plain:6.0f}")

1 measurement(s): Bayesian   1324 ( 1143 to  1575)   least squares    nan
2 measurement(s): Bayesian   1457 ( 1324 to  1629)   least squares   1720
3 measurement(s): Bayesian   1442 ( 1355 to  1548)   least squares   1501

With one measurement the forecast leans on the population, and its interval is wide; with two, the least-squares line through two noisy points overshoots, while the Bayesian forecast moves only part of the way toward it; with three it has moved most of the way to the unit’s own trend, and its interval has narrowed. The posterior mean is a precision-weighted compromise, so as measurements accumulate the prediction converges to the plain least-squares extrapolation. The posterior is exact (conjugate) for path models that are linear in their parameters and an iterated-linearisation (Laplace) approximation for the others. It requires a positive measurement_var: if every training unit’s path fitted its measurements exactly there is no noise model to blend with, and predict_rul says so.

The population path-parameter distribution

The fitted model also estimates the population distribution of the path parameters, \(\theta_i \sim N(\mu, \Sigma)\) — what a random-effects treatment, and the Bayesian prior above, needs:

print("mean a, b (mu)          :", model.path_param_mean.round(4))
print("between-unit sd (Sigma) :", np.sqrt(np.diag(model.path_param_cov)).round(4))
print("raw sample sd           :", np.sqrt(np.diag(model.path_param_sample_cov)).round(4))
print("measurement sd (sigma)  :", round(float(np.sqrt(model.measurement_var)), 3))

mean a, b (mu)          : [9.3481 0.2926]
between-unit sd (Sigma) : [3.4962 0.0591]
raw sample sd           : [3.9383 0.0592]
measurement sd (sigma)  : 2.654

The data were simulated with a mean start of 10 and rate of 0.30, starting levels spread by 3, rates by 0.06 and measurement noise 3, and the estimates are close to all of them. Notice that the raw sample standard deviation of the fitted intercepts is larger than the corrected one: because each unit’s fitted parameters are least-squares estimates, their scatter across units mixes two sources — real unit-to-unit variability and per-unit estimation noise (\(\mathrm{Cov}(\hat{\theta}_i) = \Sigma + V_i\)). path_param_cov applies the Lu-Meeker two-stage correction: the measurement variance is pooled from the per-unit residuals, each unit’s estimation covariance \(V_i = \sigma^2 (J_i^T J_i)^{-1}\) is computed from the path Jacobian, and the average is subtracted from the sample covariance.

The result is projected onto the positive semi-definite cone. If material clipping was needed — the estimation noise is comparable to the between-unit scatter, typically with few units or few measurements per unit — the estimate is on the boundary of the cone (a direction of between-unit variation estimated as zero: a variance of zero, or a correlation of ±1), a warning is raised, and the corrected covariance and the intervals drawn from it should be treated as unreliable. When every unit has only as many measurements as path parameters, the measurement variance cannot be estimated and no correction is applied.

REML estimation of the population

The moments correction can go rank-deficient when the estimation noise rivals the between-unit scatter. The alternative is to fit the random-effects (Lu-Meeker) formulation directly as a linear mixed model — each unit’s parameters are draws \(\theta_i \sim MVN(\mu, \Sigma)\), so with the random effects integrated out each unit’s measurement vector is marginally

\[y_i \sim N(X_i \mu, \; X_i \Sigma X_i^T + \sigma^2 I)\]

and \((\mu, \Sigma, \sigma^2)\) are estimated by maximising the restricted (REML) marginal likelihood — REML rather than plain ML so the variance components do not inherit the small-sample downward bias from estimating \(\mu\). Select it with population_method="reml".

Here is where it matters: six units, each measured only three to six times at irregular moments, with noisy measurements. The moments correction subtracts more estimation noise from the intercepts than their raw scatter, clips the intercept spread to zero and warns; REML estimates it directly and gets a sensible answer (the truth is 3):

rng5 = np.random.default_rng(5)
xs, ys, ids = [], [], []
for unit in range(6):
    t = np.sort(rng5.uniform(50, 1000, rng5.integers(3, 7)))
    a, b = rng5.normal(10, 3.0), rng5.normal(0.3, 0.06)
    xs.append(t)
    ys.append(a + b * t + rng5.normal(0, 8.0, t.size))
    ids.append(np.full(t.size, unit))
x_few, y_few, i_few = (np.concatenate(v) for v in (xs, ys, ids))

with warnings.catch_warnings(record=True) as caught:
    warnings.simplefilter("always")
    moments = DegradationAnalysis.fit(x_few, y_few, i_few, threshold=450.0)
print("warning:", str(caught[0].message)[:70], "...")
reml = DegradationAnalysis.fit(x_few, y_few, i_few, threshold=450.0,
                               population_method="reml")
print("moments between-unit sd:", np.sqrt(np.diag(moments.path_param_cov)).round(3))
print("REML between-unit sd   :", np.sqrt(np.diag(reml.path_param_cov)).round(3))

warning: The noise-corrected between-unit covariance of the path parameters was ...

moments between-unit sd:

 [0.    0.061]
REML between-unit sd   : [3.679 0.061]

The estimates land in the same attributes (path_param_mean, path_param_cov, measurement_var), so predict_rul and everything else work unchanged. \(\Sigma\) is parameterised by its Cholesky factor, so it is positive definite at every step of the search — no clipping. On a balanced design (every unit measured at the same times, with a path linear in its parameters) REML coincides with the corrected moments estimate whenever that needed no clipping. The twelve units at the top of the page are such a design, and the two methods agree to every printed digit:

reml12 = DegradationAnalysis.fit(x, y, i, threshold=450.0,
                                 population_method="reml")
print("moments between-unit sd:", np.sqrt(np.diag(model.path_param_cov)).round(4))
print("REML between-unit sd   :", np.sqrt(np.diag(reml12.path_param_cov)).round(4))
print("measurement sd         :", round(float(np.sqrt(model.measurement_var)), 4),
      round(float(np.sqrt(reml12.measurement_var)), 4))

moments between-unit sd: [3.4962 0.0591]
REML between-unit sd   : [3.4962 0.0591]
measurement sd         : 2.6539 2.6539

They differ on unbalanced data and when the unit count is small, where REML is preferable. The method used is recorded as population_method on the fitted model. REML requires a positive measurement variance.

REML does not always rescue the estimate: where the data hold no evidence of some direction of between-unit variation, its maximum is on the boundary of the cone too, and it warns. A maximum there is only approached by the search (the Cholesky factor’s diagonal heads for zero), so the test is whether the covariance with its smallest eigenvalue removed fits at least as well — to within sqrt(eps) relative. Six units whose slopes hardly vary (a spread of 0.002 against a measurement noise of 1) give an intercept-slope correlation of 1 by both methods:

rng1 = np.random.default_rng(1)
t13 = np.arange(0.0, 650.0, 50.0)
a6, b6 = rng1.normal(10.0, 1.5, 6), rng1.normal(0.1, 0.002, 6)
x6, i6 = np.tile(t13, 6), np.repeat(np.arange(6), t13.size)
y6 = np.repeat(a6, t13.size) + np.repeat(b6, t13.size) * x6
y6 = y6 + rng1.normal(0, 1, x6.size)

with warnings.catch_warnings(record=True) as caught6:
    warnings.simplefilter("always")
    reml6 = DegradationAnalysis.fit(x6, y6, i6, threshold=100.0,
                                    population_method="reml")
print(str(caught6[0].message)[:118], "...")
cov6 = reml6.path_param_cov
print("correlation:", round(cov6[0, 1] / np.sqrt(cov6[0, 0] * cov6[1, 1]), 5))

The REML estimate of the between-unit covariance of the path parameters (path_param_cov) is singular, on the boundary  ...
correlation: 1.0

For path models that are linear in their parameters (linear, quadratic, logarithmic, Lloyd-Lipow) the design matrix \(X_i\) is fixed and the marginal model above is exact. For a nonlinear path (exponential, power, Gompertz, …) the mean \(f(x_i, \theta_i)\) is no longer \(X_i \theta_i\), so REML uses the Lindstrom–Bates FOCE linearisation [LindstromBates1990]: each unit’s parameters are estimated at their conditional (penalised-least-squares) mode, the path is linearised about that mode to give a working linear mixed model, and the linear REML step is iterated to convergence. On a linear path this reduces to the exact fit in a single pass. Select it the same way, DegradationAnalysis.fit(..., path="exponential", population_method="reml").

Induced failure-time distribution (Lu-Meeker)

Everything so far follows the pseudo-failure-time route: extrapolate each unit’s fitted path to the threshold, get one (noisy) failure time per unit, and fit a lifetime distribution to those times. That is simple and robust, but it throws away structure — it treats each extrapolated time as a plain observation and never uses the fact that we have estimated the whole population of paths.

The Lu-Meeker approach uses that population directly. Once the model has fitted the population path-parameter distribution \(\theta \sim N(\mu, \Sigma)\) (the path_param_mean and path_param_cov above), the failure-time distribution of the population follows deterministically: a unit with path parameters \(\theta\) fails at the time its path crosses the threshold, i.e. at \(T(\theta) = \text{inv\_path}(D; \theta)\). So the population failure-time distribution is simply the distribution of \(T(\theta)\) as \(\theta\) ranges over its population. There is rarely a closed form, so induced_life evaluates it by Monte Carlo: draw many \(\theta \sim N(\mu, \Sigma)\), push each through inv_path, and collect the resulting failure times.

import numpy as np
import matplotlib.pyplot as plt
from surpyval.degradation import DegradationAnalysis

rng = np.random.default_rng(0)
threshold = 30.0

xs, ys, ids = [], [], []
for unit in range(50):
    a = rng.normal(0.0, 0.2)      # per-unit intercept
    b = rng.normal(1.0, 0.25)     # per-unit slope (degradation rate)
    t = np.arange(0, 20, 2.0)
    y = a + b * t + rng.normal(0, 0.4, t.size)
    xs.append(t)
    ys.append(y)
    ids.append(np.full(t.size, unit))
x, y, i = (np.concatenate(z) for z in (xs, ys, ids))

model = DegradationAnalysis.fit(x, y, i, threshold=threshold, path="linear")
induced = model.induced_life(n_samples=20000, random_state=1)
induced

InducedFailureDistribution(Linear path, threshold=30, median=28.6674, prob_never_fails=0)

The returned InducedFailureDistribution behaves like any other life object — sf, ff, qf, mean, median and random are all there — so you can read life quantiles straight off it:

print("pseudo-failure median :", round(float(model.qf(0.5)), 2))
print("induced median        :", round(induced.median(), 2))
print("induced B10 life      :", round(induced.qf(0.10), 2))

pseudo-failure median : 30.29
induced median        : 28.67
induced B10 life      : 22.56

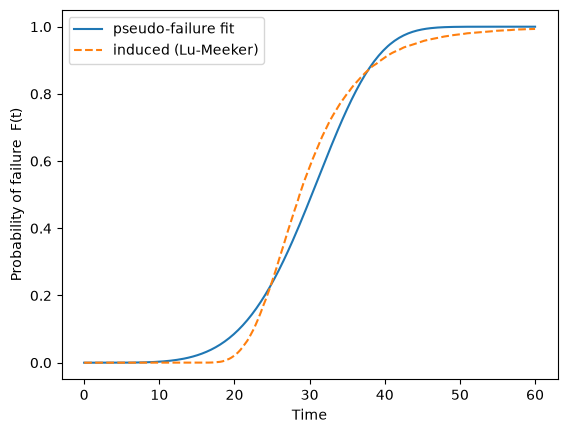

The real purpose is as a diagnostic. The pseudo-failure fit and the induced distribution come at the population life two different ways; when the path model and its population summary are trustworthy, they should agree. Overlaying the two CDFs is the check:

t = np.linspace(0, 60, 200)
plt.plot(t, model.ff(t), label="pseudo-failure fit")
plt.plot(t, induced.ff(t), "--", label="induced (Lu-Meeker)")
plt.xlabel("Time")
plt.ylabel("Probability of failure  F(t)")
plt.legend()

<matplotlib.legend.Legend at 0x7ddc8e782a20>

Close agreement is reassuring; a large gap is a warning that the path model, the Gaussian population assumption, the covariance estimate — or the lifetime distribution fitted to the pseudo failure times — is off. Here the medians, 30.3 and 28.7, differ by about 5 %, but the shapes differ more: the induced curve starts later and has the longer right tail. That is the path model talking. A failure time \((D - a)/b\) with a normally distributed rate \(b\) is right-skewed, and the default Weibull (shape near 5) is not. A right-skewed life distribution for the pseudo failure times should then agree better, and it does — the LogNormal matches the induced quantiles far more closely than the Weibull, and has the lower AIC:

from surpyval import LogNormal

lognormal_fit = DegradationAnalysis.fit(x, y, i, threshold=threshold,
                                        distribution=LogNormal)
p = [0.05, 0.1, 0.5, 0.9, 0.95]
print("quantiles at", p)
print("Weibull   :", np.round(model.qf(p), 1))
print("LogNormal :", np.round(lognormal_fit.qf(p), 1))
print("induced   :", np.round(induced.qf(p), 1))
print("AIC Weibull, LogNormal:", round(model.life_model.aic(), 1),
      round(lognormal_fit.life_model.aic(), 1))

quantiles at [0.05, 0.1, 0.5, 0.9, 0.95]
Weibull   : [17.8 20.6 30.3 38.7 40.8]
LogNormal : [20.6 22.3 29.3 38.5 41.7]
induced   : [21.2 22.6 28.7 39.5 44.2]
AIC Weibull, LogNormal: 335.9 329.6

A subtlety the induced distribution surfaces honestly: some draws of \(\theta\) describe paths that never reach the threshold (a non-increasing slope, say). Those contribute an inf failure time — a defective “never fails” mass reported as prob_never_fails — and once the quantiles reach into that mass they, and the mean, become inf. This is the correct behaviour: if a fraction of the population genuinely never fails, the population has no finite mean life. At the other end, a draw whose path is already past the threshold at the earliest measurement time crossed it at or before time zero; it counts as a failure at time zero. Finally, induced_life needs a single population of paths: an accelerated (covariate) model pools every stress level, so it is refused there unless the path parameters are modelled against stress (links, below), in which case it takes the stress Z to induce the life at.

Confidence bounds

The pseudo-failure-time approach is a two-stage estimator: the life distribution is fitted to extrapolated failure times as if they had been observed exactly. The plain life-model bounds therefore treat the pseudo failure times as certain and are too narrow. DegradationModel.cb corrects this, folding the first-stage (path-fit and extrapolation) uncertainty back into the life-model covariance with an analytic delta-method / generated-regressor correction:

import numpy as np
from matplotlib import pyplot as plt
from surpyval.degradation import DegradationAnalysis

rng = np.random.default_rng(0)
times = np.arange(1, 9) * 100.0
n_units = 60
x = np.tile(times, n_units)
unit = np.repeat(np.arange(n_units), times.size)
slopes = rng.normal(0.22, 0.05, size=n_units)     # between-unit spread
y = 10 + np.repeat(slopes, times.size) * x + rng.normal(0, 2.0, size=x.size)

model = DegradationAnalysis.fit(x, y, unit, threshold=150)

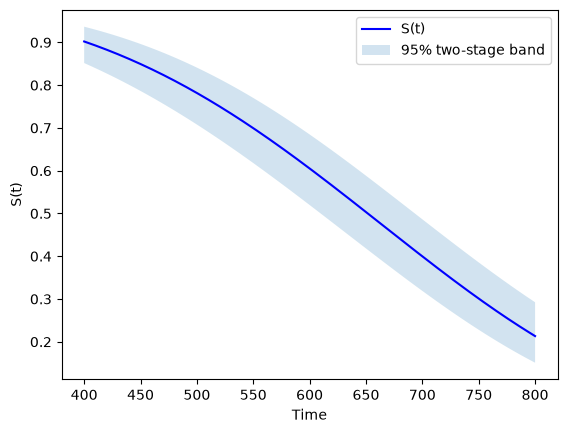

t = np.linspace(400, 800, 200)
band = model.cb(t, on='sf')                # (n, 2): two-stage [lower, upper]
plt.plot(t, model.sf(t), 'b', label='S(t)')
plt.fill_between(t, band[:, 0], band[:, 1], alpha=0.2,
                 label='95% two-stage band')
plt.legend()
plt.xlabel('Time')
plt.ylabel('S(t)')

Text(0, 0.5, 'S(t)')

The correction adds a positive term to the life-model information inverse, so the two-stage parameter covariance (model.life_parameter_covariance()) is the ordinary MLE covariance plus the propagated first-stage variance — the bounds widen to their correct coverage. A slower, assumption-light cross-check resamples whole units and reruns the whole pipeline:

model.cb(np.array([500.0, 600.0]), on='sf', method='bootstrap',
         n_boot=100, random_state=0)

array([[0.73919701, 0.8837812 ],
       [0.54991712, 0.69589865]])

Both methods take on ("sf", "ff" or "Hf"), alpha_ci (the total tail probability: a two-sided band has alpha_ci / 2 in each tail, so the default is a 95 % band) and bound ("two-sided", "lower" or "upper"). The bounds describe the life model; the stochastic-process and destructive models further down have their own uncertainty story (the destructive model offers bootstrap bounds; the process models do not yet report parameter uncertainty).

Accelerated degradation testing (covariates)

In accelerated degradation testing (ADT) units are run at elevated stress (temperature, voltage, load) so they degrade fast enough to measure, and life is then extrapolated back to use conditions. There are three ways to let stress into the general-path model — on the life, on the path parameters, or on the clock — compared side by side on the Degradation Analysis page; this section takes them in that order.

The simplest: pass the stress as Z to DegradationAnalysis.fit. Z is aligned to x (one row per measurement, one column per stress variable) and must be constant within each unit — a unit is tested at a single stress — while the units must span at least two stress levels (the fit refuses a single one: the stress effect could not be told from the baseline). The paths are fitted exactly as before, and step three fits a regression life model to the pseudo failure times instead of a plain distribution, with each unit’s stress as its covariate, so life can be predicted at any stress. A plain distribution is wrapped automatically in an accelerated-failure-time model, \(H(t \mid z) = H_0(e^{\beta^\top z} t)\) (a positive coefficient means higher stress, shorter life); an explicit regression fitter (AFT(LogNormal), WeibullPH, …) is used as given.

rng = np.random.default_rng(0)
times = np.arange(1, 11) * 5.0
xs, ys, ids, Zs = [], [], [], []
uid = 0
for stress in [0.0, 0.5, 1.0, 1.5]:        # four stress levels
    for _ in range(12):
        rate = 0.5 * np.exp(0.8 * stress) * np.exp(rng.normal(0, 0.1))
        path = 10 + rng.normal(0, 1) + rate * times
        xs.append(times)
        ys.append(path + rng.normal(0, 0.5, times.size))
        ids.append(np.full(times.size, uid))
        Zs.append(np.full(times.size, stress))
        uid += 1
xd, yd, idd, Zd = (np.concatenate(a) for a in (xs, ys, ids, Zs))

model = DegradationAnalysis.fit(xd, yd, idd, threshold=100.0, Z=Zd)
model

Degradation Analysis SurPyval Model
===================================
Path Model          : Linear
Threshold           : 100.0
Number of Units     : 48
Censored Units      : 0
Life Distribution   : Weibull (Log Linear [exp(beta'Z)] covariates)
Parameters          :
     alpha: 191.36339411120738
      beta: 10.908549179108482
    beta_0: 0.851334278865208

The last fitted coefficient is the stress effect (higher stress ⇒ faster degradation ⇒ shorter life); the regression itself is model.life_model, model.Z holds one stress row per unit (aligned to model.units), and model.is_accelerated is True. The prediction methods now take the stress vector Z at which to evaluate life — and refuse to predict without it — so life at use conditions is one call:

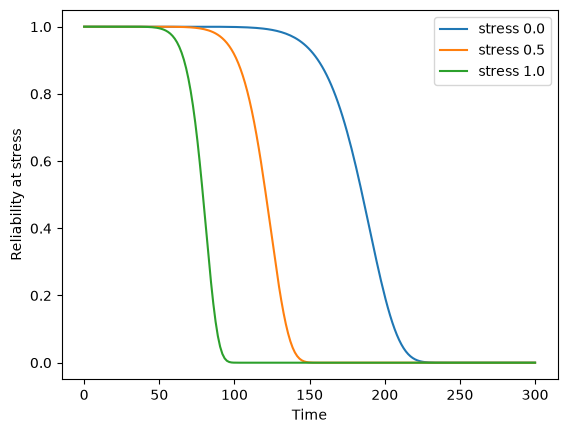

for stress in [0.0, 0.5, 1.0]:
    print(f'stress {stress}: mean life = {model.mean(Z=[stress]):.1f}')

t = np.linspace(0, 300, 200)
for stress in [0.0, 0.5, 1.0]:
    plt.plot(t, model.sf(t, Z=[stress]), label=f'stress {stress}')
plt.legend()
plt.xlabel('Time')
plt.ylabel('Reliability at stress')

stress 0.0: mean life = 182.7
stress 0.5: mean life = 119.4
stress 1.0: mean life = 78.0

Text(0, 0.5, 'Reliability at stress')

qf and mean invert / integrate the regression survival function, and random draws from it.

Fitted with fit_from_df(..., Z_cols=...), the model records the stress column names (as model.Z_cols, kept by to_dict), and every method that takes Z also takes a DataFrame and selects those columns by name; a model fitted from arrays refuses a DataFrame rather than guess at its column order. A missing (nan) stress, time or probability gives nan in its own row and leaves the others alone; the methods that describe a single unit (predict_rul, induced_life) refuse it instead:

adt = DegradationAnalysis.fit_from_df(
    pd.DataFrame({"t": xd, "y": yd, "unit": idd, "stress": Zd}),
    x_col="t", y_col="y", i_col="unit", Z_cols="stress", threshold=100.0)
use = pd.DataFrame({"stress": [0.0, 0.5, np.nan]})
adt.qf(0.5, use)             # median life per row; nan where it is missing

array([185.04064825, 120.89330524,          nan])

Two-stage confidence bounds at a stress are available by bootstrap: units are resampled (each carrying its stress), the whole accelerated pipeline is rerun, and the reliability at Z is read off each refit, so the first-stage path/extrapolation uncertainty is folded in — just as for the plain model, but evaluated at a chosen stress:

t = np.array([50.0, 100.0, 150.0])
band = model.cb(t, Z=[0.0], on='sf', method='bootstrap',
                n_boot=50, random_state=0)
band                                        # (n, 2): [lower, upper] at Z=0

array([[0.9999988 , 0.99999999],
       [0.99848021, 0.99986522],
       [0.86301391, 0.97137427]])

The analytic (generated-regressor) delta-method correction used for the plain model is not derived for the regression life fit, so method='bootstrap' is required for a covariate model (and model.cb needs the stress Z). The first-stage-only regression bounds — which ignore the extrapolation uncertainty — remain available directly through model.life_model.cb(x, Z, ...).

Modelling the degradation mechanism against stress

The fit above lets stress act only on the pseudo failure times. It never says why life shortens, and its population of path parameters pools every stress level, so it describes no unit actually tested. Passing links alongside Z models the degradation mechanism instead: the named path parameters depend on stress, on an "identity" link (the parameter itself is linear in Z) or a "log" link (its log is, so it stays positive and stress acts multiplicatively); the others do not depend on stress, though they still vary from unit to unit. Here the degradation rate b is log-linear in stress (with Z = 1/T that is the Arrhenius relationship) and the starting level a is not:

mech = DegradationAnalysis.fit(xd, yd, idd, threshold=100.0, Z=Zd,
                               links={'b': 'log'})
dict(zip(mech.path_param_fixed_names,
         mech.path_param_fixed.round(3).tolist()))

{'a': 10.184, 'log(b)': -0.69, 'log(b):Z0': 0.827}

The data were simulated with log b = log 0.5 + 0.8 * stress, and the fixed effects recover it: log(b) is the log-rate intercept and log(b):Z0 the stress coefficient. path_param_link_cov holds the unit-to-unit scatter left once the stress effect is removed, estimated by the same two-stage or REML route as the plain population. The life model is still the covariate regression on the pseudo failure times, so sf, qf, mean and the bootstrap bounds all work exactly as above.

What the mechanism adds is a population of paths at each stress: on the link scale, \(\eta \sim N(D(z)\gamma, \Sigma)\). path_param_link_mean(Z) is its mean \(D(z)\gamma\) (here a and log(b)), and path_param_link_cov its covariance \(\Sigma\), the same at every stress. path_param_median(Z) maps the mean through the links to give the typical (median) unit’s natural-scale path parameters at that stress:

print("link-scale mean at stress 1:", mech.path_param_link_mean([1.0]).round(3))
print("median a, b at stress 1    :", mech.path_param_median([1.0]).round(3))
print("between-unit sd (link)     :",
      np.sqrt(np.diag(mech.path_param_link_cov)).round(3))

link-scale mean at stress 1: [10.184  0.137]
median a, b at stress 1    : [10.184  1.147]
between-unit sd (link)     : [0.824 0.095]

(The pooled path_param_mean and path_param_cov are still computed, but they mix every stress level.) induced_life(Z=...) pushes the whole stress-conditional population through the threshold crossing. Inside the tested range it agrees with the regression life fit; outside it — here at -0.5, below every tested level, as use conditions usually are — it is the mechanism rather than a curve through the pseudo failure times that carries the extrapolation:

links_median = {}
for stress in [-0.5, 0.0, 1.0]:
    rate = mech.path_param_median([stress])[1]
    induced = mech.induced_life(Z=[stress], random_state=0)
    regression = float(np.ravel(model.qf(0.5, Z=[stress]))[0])
    links_median[stress] = induced.median(), regression
    print(f'stress {stress:+.1f}: median rate {rate:.3f}, '
          f'median life induced {induced.median():6.1f} '
          f'/ regression {regression:6.1f}')

stress -0.5: median rate 0.332, median life induced  270.6 / regression  283.2
stress +0.0: median rate 0.502, median life induced  178.9 / regression  185.0
stress +1.0: median rate 1.147, median life induced   78.3 / regression   79.0

Remaining useful life becomes stress-aware in the same way. predict_rul(x, y, Z=...) updates a new unit’s trajectory against the population of units at its stress, rather than against a mixture of every stress tested; the posterior is taken on the link scale, so a log-linked rate stays positive. With only a couple of measurements the stress matters a great deal, and as measurements accumulate the prediction converges on the unit’s own trend whatever the stress:

new_x, new_y = [5.0, 10.0], [13.0, 16.0]
rul_at = {}
for stress in [0.0, 1.5]:
    pred = mech.predict_rul(new_x, new_y, Z=[stress], random_state=0)
    lower, upper = pred.rul_interval
    rul_at[stress] = pred.rul
    print(f'stress {stress}: RUL {pred.rul:5.1f}  '
          f'(95% interval {lower:5.1f} to {upper:5.1f})')

stress 0.0: RUL 161.8  (95% interval 137.1 to 191.2)
stress 1.5: RUL  79.0  (95% interval  69.4 to  90.3)

A model fitted with Z alone (no links) refuses Z in predict_rul and induced_life, since it has no stress-conditional population to condition on (its predict_rul uses the pooled population and its induced_life is refused altogether); a model fitted with links requires it. The step-stress clock below takes Z in both, in its own way.

Step-stress tests: an accelerated clock

Everything above assumes each unit is tested at one stress — Z must be constant within a unit. In a step-stress test the same units are stepped up in stress during the test, so each unit’s path runs at several stresses in turn. acceleration='clock' handles this. Stress speeds up the clock of every unit’s path: a unit at stress z ages \(\mathrm{AF}(z) = \exp(\gamma^\top (z - z_{\text{ref}}))\) times faster than at the reference stress, and its path is the ordinary path model evaluated on the time it has aged at the reference stress. Z is now one row per measurement giving the stress over the interval that ends at that measurement, and stress_ref is the use condition.

Here 25 units run for 300 hours — 100 at 50 °C, 100 at 75 °C, then 100 at 100 °C — with z = 1/T (so the acceleration is Arrhenius) and a true \(\gamma = -5000\), inspected every 10 hours. At 50 °C each unit’s path is a + b * t with a unit-to-unit rate b around 0.02, and failure is at 15:

from surpyval import StepSchedule

rng = np.random.default_rng(3)
temps = np.array([323.0, 348.0, 373.0])        # 50, 75 and 100 C, in kelvin
z_levels = 1 / temps
gamma_true = -5000.0
times = np.arange(10.0, 300.0 + 1e-9, 10.0)
z = np.select([times <= 100, times <= 200], z_levels[:2], z_levels[2])
af = np.exp(gamma_true * (z - z_levels[0]))    # speed-up relative to 50 C

xs, ys, ids, Zs = [], [], [], []
for unit in range(25):
    a, b = rng.normal([1.0, 0.02], [0.2, 0.003])  # 50 C start and rate
    tau = np.cumsum(10.0 * af)                     # hours aged at 50 C
    xs.append(times)
    ys.append(a + b * tau + rng.normal(0, 0.3, times.size))
    ids.append(np.full(times.size, unit))
    Zs.append(z)
xs_, ys_, ids_, Zs_ = (np.concatenate(v) for v in (xs, ys, ids, Zs))

step = DegradationAnalysis.fit(xs_, ys_, ids_, threshold=15.0, Z=Zs_,
                               acceleration='clock',
                               stress_ref=[z_levels[0]])
step

Degradation Analysis SurPyval Model
===================================
Path Model          : Linear
Threshold           : 15.0
Number of Units     : 25
Censored Units      : 0
Acceleration        : clock (step-stress)
Stress coefficients : [-4990.516426]
Reference stress    : [0.003096]
Life Distribution   : Weibull (reference stress)
Parameters          :
     alpha: 789.8722958631233
      beta: 5.278692246600435

The stress coefficient is close to the -5000 simulated (an activation energy of \(5000 \times 8.617\times10^{-5} \approx 0.43\) eV). It is stored as step.gamma, with step.stress_ref the reference stress (the mean stress over the measurement intervals if stress_ref is not given), step.acceleration == 'clock', and step.Z the stress rows as given. The path parameters, their population (path_param_mean, path_param_cov) and the pseudo failure times are all on the 50 °C clock, so the life distribution listed is the life at the reference stress.

It is worth looking at how the stress rows line up with the measurements around the first step. The chamber goes from 50 °C to 75 °C just after the 100-hour inspection, so the row for the 100-hour measurement still says 50 °C (that interval ran at 50 °C) and the row for the 110-hour measurement says 75 °C. Each unit’s clock adds up AF times the interval length, which is what the model sees instead of calendar time:

unit0 = ids_ == 0
rows = slice(8, 12)
af_rows = step.acceleration_factor
tau0 = np.cumsum(np.diff(np.concatenate([[0.0], xs_[unit0]]))
                 * np.array([af_rows([zz]) for zz in Zs_[unit0]]))
pd.DataFrame({
    "time (h)": xs_[unit0][rows],
    "stress row (C)": (1 / Zs_[unit0][rows] - 273.0).round(0),
    "AF over interval": [round(af_rows([zz]), 2) for zz in Zs_[unit0][rows]],
    "clock (50 C hours)": tau0[rows].round(1),
})

	time (h)	stress row (C)	AF over interval	clock (50 C hours)
0	90.0	50.0	1.00	90.0
1	100.0	50.0	1.00	100.0
2	110.0	75.0	3.03	130.3
3	120.0	75.0	3.03	160.7

model.path(t, unit) evaluates a unit’s fitted path in calendar time, along its own stress history (holding its last stress beyond its last measurement), and bends at each step; model.plot() draws every unit this way:

for unit in range(4):
    m = ids_ == unit
    line, = plt.plot(xs_[m], ys_[m], '.', alpha=0.6)
    plt.plot(times, step.path(times, unit), color=line.get_color())
for edge in (100, 200):
    plt.axvline(edge, color='grey', linestyle=':')
plt.xlabel('Time (h)')
plt.ylabel('Degradation')

Text(0, 0.5, 'Degradation')

Every life method takes the stress as Z: one row for a constant stress, or a StepSchedule for a stress that changes over time. Because stress only changes the speed of the clock, life under any history is the reference-stress life at the clock time, \(F(t) = F_0(\tau(t))\):

profile = StepSchedule.from_changepoints([0, 100, 200], z_levels)
print('AF at 100 C                 :',
      round(step.acceleration_factor([z_levels[2]]), 2))
print('mean life at 50 C           :', round(step.mean(Z=[z_levels[0]]), 1))
print('mean life at 100 C          :', round(step.mean(Z=[z_levels[2]]), 1))
print('mean life on the test profile:', round(step.mean(Z=profile), 1))

t = np.linspace(0, 400, 401)
plt.plot(t, step.ff(t, Z=[z_levels[2]]), label='constant 100 C')
plt.plot(t, step.ff(t, Z=profile), label='step profile')
plt.plot(t, step.ff(t, Z=[z_levels[1]]), label='constant 75 C')
plt.xlabel('Time (h)')
plt.ylabel('Probability of failure  F(t)')
plt.legend()

AF at 100 C                 : 7.93
mean life at 50 C           : 727.5
mean life at 100 C          : 91.7
mean life on the test profile: 240.5

<matplotlib.legend.Legend at 0x7ddc8a492c90>

Where the information about \(\gamma\) comes from decides the estimation method. With the default population_method='moments' it comes from the units whose stress steps — the change of slope at a step fixes the acceleration — by profile least squares: for each trial \(\gamma\) every unit’s path is refitted on its clock, and \(\gamma\) minimises the pooled residual sum of squares. A unit held at one stress can absorb any acceleration into its own rate, so with no steps at all this raises an error. population_method='reml' fits the mixed model instead: units share one population of path parameters, so differences between units run at different constant stresses identify \(\gamma\) as well, and it works for a classic constant-stress test too. It maximises the (Lindstrom-Bates) approximate marginal likelihood over \(\gamma\), then estimates the population by REML at that \(\gamma\) — the details are on the Degradation Analysis page. It is the slower of the two (seconds rather than a fraction of a second here). On this stepped test the two agree:

step_reml = DegradationAnalysis.fit(xs_, ys_, ids_, threshold=15.0, Z=Zs_,
                                    acceleration='clock',
                                    stress_ref=[z_levels[0]],
                                    population_method='reml')
print('gamma, moments:', step.gamma.round(0), '  REML:', step_reml.gamma.round(0))

gamma, moments: [-4991.]   REML: [-4990.]

reml is also how a clock is fitted to a classic constant-stress test, where moments refuses. Here it is on the four-level test from the start of this section, next to the two earlier treatments of the same data. The life regression’s stress coefficient, the log-rate’s stress coefficient under links, and the clock’s \(\gamma\) all estimate the same quantity (the data were simulated with a rate proportional to \(e^{0.8 z}\), which for the linear path is a clock with \(\gamma = 0.8\)):

clock_adt = DegradationAnalysis.fit(xd, yd, idd, threshold=100.0, Z=Zd,
                                    acceleration='clock',
                                    population_method='reml',
                                    stress_ref=[0.0])
print('life regression coefficient:', round(model.life_model.params[-1], 3))
print('links log(b):Z0            :', round(mech.path_param_fixed[-1], 3))
print('clock gamma                :', clock_adt.gamma.round(3))
for name, fitted in [('regression', model), ('clock', clock_adt)]:
    print(f'median life at stress -0.5, {name:10s}:',
          round(float(np.ravel(fitted.qf(0.5, Z=[-0.5]))[0]), 1))

life regression coefficient: 0.851
links log(b):Z0            : 0.827
clock gamma                : [0.824]
median life at stress -0.5, regression: 283.2
median life at stress -0.5, clock     : 273.4

The three coefficients are 0.851, 0.827 and 0.824, and the median life at \(-0.5\), below every tested level, is 283 from the regression, 273 from the clock and 271 from the links model’s induced life above: three routes to the same extrapolation, differing by a few percent. That agreement is the check to make; a clear disagreement would mean the stress acts on the paths in a way one of the models cannot represent. For the linear path the clock and links={'b': 'log'} are nearly the same model (the theory page explains why), so their closeness is expected.

Remaining life on a stress plan. For a unit you are watching, the stress matters twice: its history sets how far along its reference-stress clock it already is, and the plan for the rest of its life sets how fast it gets through the remainder. predict_rul takes both: Z is the unit’s history, one row per measurement as at fit (or one row for a constant stress), and Z_future the stress from its last measurement on — a row, or a StepSchedule whose time zero is now (by default the last stress is held). Here is a unit run on the test profile for 150 hours, with two plans for what comes next:

new_t = np.arange(10.0, 150.0 + 1e-9, 10.0)
new_z = np.select([new_t <= 100], [z_levels[0]], z_levels[1])
new_y = 0.9 + 0.022 * np.cumsum(
    10.0 * np.exp(gamma_true * (new_z - z_levels[0]))
) + rng.normal(0, 0.3, new_t.size)

plans = {
    'stay at 75 C': [z_levels[1]],
    '50 h at 75 C, then 100 C': StepSchedule.from_changepoints(
        [0, 50], [[z_levels[1]], [z_levels[2]]]),
}
for name, plan in plans.items():
    pred = step.predict_rul(new_t, new_y, Z=new_z, Z_future=plan,
                            random_state=0)
    lower, upper = pred.rul_interval
    print(f'{name:26s}: RUL {pred.rul:5.1f} h '
          f'(95% interval {lower:5.1f} to {upper:5.1f})')

stay at 75 C              : RUL 141.3 h (95% interval 125.6 to 160.6)
50 h at 75 C, then 100 C  : RUL  84.9 h (95% interval  78.9 to  92.3)

The posterior is taken on the unit’s clock against the reference-stress population, and each sampled failure time is mapped back to calendar time along the history and the plan. predict_failure_time and predict_remaining_life take the same Z and Z_future. induced_life(Z=...) pushes the whole population of paths through the threshold under any stress or profile, and the two-stage confidence bounds are available by bootstrap: units are resampled with their stress histories and the clock is re-estimated on every resample.

induced = step.induced_life(Z=profile, random_state=0)
print('induced median life on the profile:', round(induced.median(), 1))
step.cb([200.0, 240.0], Z=profile, method='bootstrap', n_boot=50,
        random_state=0)

induced median life on the profile: 238.2

array([[0.949867  , 0.98978249],
       [0.35715434, 0.65255063]])

acceleration='clock' cannot be combined with links or path='best', and the life model must be a plain distribution, since stress enters through the clock. The analytic confidence-bound correction is not derived for a clock model, whose pseudo failure times also depend on the estimated clock, so cb needs method='bootstrap'. With population_method='reml' every bootstrap resample re-runs the mixed-model estimate of the clock, which takes seconds per resample; budget n_boot accordingly.

Which stress model?

The three accelerated general-path models side by side (the reasoning is in Choosing how stress enters a general-path model on the Degradation Analysis page):

	Z	Z + links	Z + acceleration='clock'
stress within a unit	constant	constant	may change (step-stress)
stress acts on	pseudo failure times (regression)	chosen path parameters	the time scale of the whole path
life methods (sf, qf, mean, …) take	one stress row	one stress row	a row or a StepSchedule
predict_rul prior	pooled population (no Z)	population at the unit’s stress (Z)	reference population on the unit’s clock (Z, Z_future)
induced_life	refused	at a stress row	at a row or a StepSchedule
population_method	either	either	moments needs stepped units; reml works for any test
cb	bootstrap	bootstrap	bootstrap

Stochastic-process degradation models

Everything above is the general-path approach: fit a deterministic curve to each unit, extrapolate it to the threshold to get a pseudo failure time, then fit a lifetime distribution to those times. It works well when each unit really does follow a smooth trend plus measurement noise.

But sometimes the degradation itself is random over time, not a smooth curve observed with error. A crack does not grow along a tidy exponential; it jumps ahead in fits and starts. A wear signal wanders up and down from measurement to measurement. In those cases it is more honest to model the increments of the degradation as a stochastic process, and read the failure-time distribution off the process directly — as the distribution of the first time the process crosses the threshold (the “first-passage time”). This is a standard part of the reliability toolkit; see [Meeker1998] for a textbook treatment and [LuMeeker1993] for the idea of deriving a failure-time distribution from degradation measurements.

SurPyval provides two such processes. They are not competitors; they describe different physics, and the right one is dictated by whether your degradation can decrease:

• WienerProcess — for signals that fluctuate up and down (noisy sensors, measurements that wobble).

• GammaProcess — for damage that only ever accumulates (wear, corrosion, crack growth).

Both are fitted from the same three arrays you have used throughout this section: x (measurement times), y (degradation measurements) and i (the unit each measurement belongs to). Internally each model looks only at the increments between consecutive measurements of a unit, so units can be measured at different, irregular times without any special handling — a two-week gap simply contributes a larger dt.

One consequence to keep in mind: the fit never sees a unit’s starting level, but the life distribution assumes every unit starts from degradation 0 at time 0, so threshold is the distance a new unit travels to failure. If your measurements start from a baseline (a resistance of 100 Ω that fails at 110 Ω), subtract it, or pass the distance (threshold=10). The examples below all start at zero.

The Wiener process

A Wiener process with drift (Brownian motion with drift) models the degradation as

\[W(t) = \mu\, t + \sigma\, B(t),\]

where \(B(t)\) is standard Brownian motion. There are just two parameters, and it is worth being clear about what each one means:

• \(\mu\) — the drift. This is the average rate at which degradation accumulates: on average the signal climbs by \(\mu\) per unit time. A larger drift means faster wear-out and a shorter life.

• \(\sigma\) — the diffusion (or volatility). This is the size of the random wobble around that average trend. With \(\sigma = 0\) the process would be a perfectly straight line \(\mu t\) (noise-free data, which the fit refuses: that is not a Wiener process); the bigger \(\sigma\), the more the path jitters up and down and the more spread-out the failure times become. (Wiener degradation models, including extensions with unit-to-unit random effects, are surveyed in [Wang2010].)

Over any interval of length \(\Delta t\), the change in degradation is Gaussian:

\[\Delta W \sim \mathrm{Normal}\!\left(\mu\, \Delta t,\; \sigma^2\, \Delta t\right).\]

Two things follow from this. First, because a Normal can be negative, the path can go down as well as up — which is exactly why the Wiener process is the right model for noisy, non-monotone signals. Second, the increments are independent, so fitting is easy: the drift is just the total degradation divided by the total time, and the diffusion is estimated from how much the increments scatter around that trend. SurPyval does this by maximum likelihood.

Failure = first passage. A unit fails the first time \(W(t)\) reaches the threshold \(D\). For a Wiener process this first-passage time has a famous closed form — the Inverse Gaussian distribution — with

\[\text{mean} = \frac{D}{\mu}, \qquad \text{shape} = \frac{D^2}{\sigma^2}.\]

The mean life \(D/\mu\) is beautifully intuitive: distance to failure divided by the average speed. The shape controls how tightly the failure times cluster around that mean (more diffusion → more scatter). Because the increments are independent, the model also needs the drift to be positive — a non-positive drift would mean the process is not reliably heading toward the threshold at all, so SurPyval raises an error rather than return a “life” that may never end.

Let’s fit one. We simulate 30 units, each measured every half–time-unit, with a true drift of 0.5 and diffusion 0.4, failing at a degradation of 10:

import numpy as np
import matplotlib.pyplot as plt
from surpyval.degradation import WienerProcess

rng = np.random.default_rng(0)
mu_true, sigma_true, threshold = 0.5, 0.4, 10.0

xs, ys, ids = [], [], []
for unit in range(30):
    t = np.arange(0, 15.5, 0.5)
    increments = rng.normal(
        mu_true * 0.5, sigma_true * np.sqrt(0.5), size=t.size - 1
    )
    y = np.concatenate([[0.0], np.cumsum(increments)])
    xs.append(t)
    ys.append(y)
    ids.append(np.full(t.size, unit))
x, y, i = (np.concatenate(a) for a in (xs, ys, ids))

model = WienerProcess.fit(x, y, i, threshold=threshold)
model

Wiener Process Degradation Model
================================
Drift (mu)          : 0.486346
Diffusion (sigma)   : 0.389563
Threshold           : 10
Mean time to failure: 20.5615

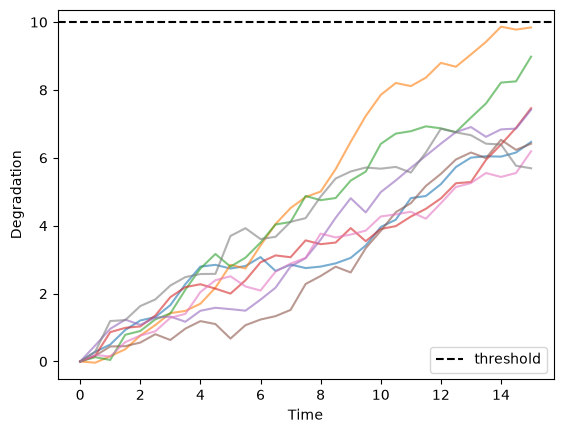

Read the summary line by line: the fitted drift and diffusion are close to the 0.5 and 0.4 we simulated, and the mean time to failure is threshold / drift — roughly 10 / 0.5 = 20 time units. Notice the paths below are jagged and occasionally dip downward; that non-monotone wobble is the Wiener process’s defining feature.

for unit in range(8):
    m = i == unit
    plt.plot(x[m], y[m], alpha=0.6)
plt.axhline(threshold, color="k", linestyle="--", label="threshold")
plt.xlabel("Time")
plt.ylabel("Degradation")
plt.legend()

<matplotlib.legend.Legend at 0x7ddc889687a0>

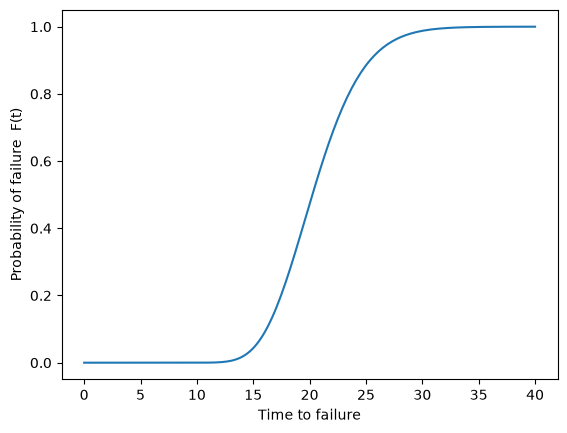

Now the payoff: a full failure-time distribution, derived from the process, that you can query like any other SurPyval model. mean() is the average life, ff(t) is the probability of having failed by time t (the CDF), sf(t) is the reliability, and qf(p) is the quantile (e.g. the median life, or the time by which 10 % have failed):

print("mean life           :", round(model.mean(), 2))
print("P(fail by t = 25)   :", round(model.ff(25.0), 3))
print("median life         :", round(model.qf(0.5), 2))
print("B10 life (10% fail) :", round(model.qf(0.10), 2))

t = np.linspace(0, 40, 200)
plt.plot(t, model.ff(t))
plt.xlabel("Time to failure")
plt.ylabel("Probability of failure  F(t)")

mean life           : 20.56
P(fail by t = 25)   : 0.885
median life         : 20.25
B10 life (10% fail) : 16.17

Text(0, 0.5, 'Probability of failure  F(t)')

Remaining useful life. The real power of a degradation model is that it can update its forecast for a unit you have been watching. If a unit is currently at degradation level 7 (out of a threshold of 10), only the remaining distance of 3 matters, and — because Wiener increments are independent of the past — the remaining life is itself an Inverse Gaussian over that shorter distance. predict_rul returns its median and an interval:

rul = model.predict_rul(current_degradation=7.0)
print("median remaining life :", round(rul.rul, 2))
print("95% interval          :", tuple(round(v, 2) for v in rul.rul_interval))

median remaining life : 5.87
95% interval          : (3.18, 10.88)

The interval widths tell you how much uncertainty remains: a unit close to the threshold has a short, tight remaining-life estimate; a fresh unit has a long, uncertain one. If the current degradation is already at or beyond the threshold, prob_already_failed is 1 and the remaining life is 0. rul is a ProcessRUL holding rul (the median), rul_interval (equal-tailed, at level alpha_ci, default 0.05) and prob_already_failed. Unlike the general-path predict_rul it needs only the current level, not the unit’s history — the independent increments make the past irrelevant — and the interval reflects the randomness of the process, not uncertainty in the fitted mu and sigma (the process models do not report parameter uncertainty). The fitted parameters are model.mu and model.sigma (together, model.params), and hf, Hf, df and random(size, random_state=...) complete the set of life methods.

The Gamma process

The Wiener process allows the signal to decrease, which is wrong for damage that is physically irreversible — a crack never heals, corrosion never reverses, wear never un-wears. For those, use a Gamma process (whose use in maintenance and reliability is surveyed in [vanNoortwijk2009]), whose increments are strictly non-negative, so the path is monotone increasing.

Over an interval of length \(\Delta t\), the Gamma-process increment is Gamma-distributed:

\[\Delta W \sim \mathrm{Gamma}\!\left(\text{shape} = \alpha\, \Delta t,\; \text{rate} = \beta\right).\]

Again, two parameters, and again it is worth knowing what they mean:

• \(\alpha\) — the shape rate. It controls how quickly and how steadily damage accrues. The amount of shape accumulated by time \(t\) is \(\alpha t\); a large \(\alpha\) gives many small, regular increments (a smooth-looking climb), a small \(\alpha\) gives fewer, larger, jumpier increments.

• \(\beta\) — the rate parameter of those increments. It sets their scale: the mean degradation accumulated per unit time is \(\alpha / \beta\), and the variance per unit time is \(\alpha / \beta^2\).

So \(\alpha/\beta\) is the Gamma process’s analogue of the Wiener drift — the average degradation speed — while \(\alpha\) alone governs how regular versus jumpy the accumulation is.

Failure = first passage, again, but now the monotonicity makes it especially clean: the process has crossed the threshold \(D\) by time \(t\) exactly when its level \(W(t)\) is at or above \(D\). So the probability of having failed by \(t\) is

\[F(t) = \Pr\!\left(W(t) \ge D\right),\]

which SurPyval evaluates with the (regularised) incomplete gamma function. There is no simpler closed form than that, but every method you need — sf, ff, df, qf, mean, random — is computed from it.

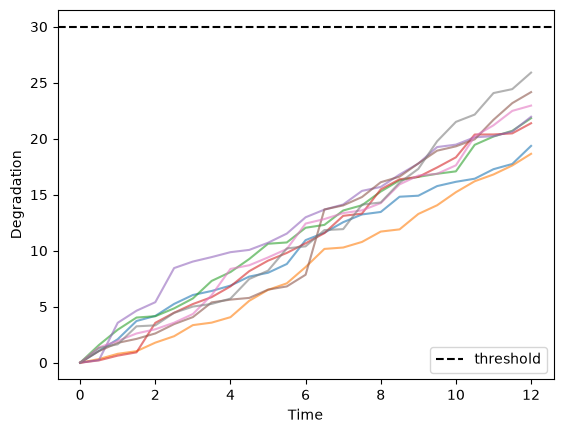

Here we simulate 40 units of monotone wear with shape rate 3 and rate 1.5 (so mean degradation speed \(\alpha/\beta = 2\) per unit time), failing at 30:

from surpyval.degradation import GammaProcess

rng = np.random.default_rng(1)
alpha_true, beta_true, threshold = 3.0, 1.5, 30.0

xs, ys, ids = [], [], []
for unit in range(40):
    t = np.arange(0, 12.5, 0.5)
    increments = rng.gamma(alpha_true * 0.5, 1.0 / beta_true, size=t.size - 1)
    y = np.concatenate([[0.0], np.cumsum(increments)])
    xs.append(t)
    ys.append(y)
    ids.append(np.full(t.size, unit))
x, y, i = (np.concatenate(a) for a in (xs, ys, ids))

model = GammaProcess.fit(x, y, i, threshold=threshold)
model

Gamma Process Degradation Model
===============================
Shape rate (alpha)  : 2.97309
Rate (beta)         : 1.50409
Threshold           : 30
Mean time to failure: 15.3452

The fitted alpha and beta recover the 3 and 1.5 we used, and the mean time to failure is about threshold / (alpha/beta) = 30 / 2 = 15. The paths this time only ever climb — no downward wobble is possible:

for unit in range(8):
    m = i == unit
    plt.plot(x[m], y[m], alpha=0.6)
plt.axhline(threshold, color="k", linestyle="--", label="threshold")
plt.xlabel("Time")
plt.ylabel("Degradation")
plt.legend()

<matplotlib.legend.Legend at 0x7ddc8896aa20>

The failure-time distribution and remaining-life prediction work exactly as they did for the Wiener model — same method names, same meaning:

print("mean life      :", round(model.mean(), 2))
print("median life    :", round(model.qf(0.5), 2))

rul = model.predict_rul(current_degradation=20.0)
print("RUL at y = 20  :", round(rul.rul, 2),
      "  interval", tuple(round(v, 2) for v in rul.rul_interval))

mean life      : 15.35
median life    : 15.29
RUL at y = 20  : 5.17   interval (2.85, 7.93)

Because a Gamma process cannot go down, passing it degradation that decreases over an interval is a modelling error, and SurPyval says so rather than fitting something meaningless — the message points you at the Wiener process instead:

# this data dips from 5 back to 3 -- not allowed for a monotone process
GammaProcess.fit([0, 1, 2], [0.0, 5.0, 3.0], [1, 1, 1], threshold=10.0)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[69], line 2
      1 # this data dips from 5 back to 3 -- not allowed for a monotone process
----> 2 GammaProcess.fit([0, 1, 2], [0.0, 5.0, 3.0], [1, 1, 1], threshold=10.0)

File ~/checkouts/readthedocs.org/user_builds/surpyval/envs/latest/lib/python3.12/site-packages/surpyval/degradation/process_models.py:1576, in GammaProcess.fit(cls, x, y, i, threshold, Z, stress_ref, resolution, gauge, rounding, exact_start, gauge_method)
   1574     raise ValueError("stress_ref is only meaningful with Z")
   1575 dt, dy = _increments(x, y, i)
-> 1576 cls._check_monotone(dy)
   1577 zero, delta = cls._zero_increments(dy, resolution)
   1578 if zero.any():

File ~/checkouts/readthedocs.org/user_builds/surpyval/envs/latest/lib/python3.12/site-packages/surpyval/degradation/process_models.py:1850, in GammaProcess._check_monotone(dy)
   1847 @staticmethod
   1848 def _check_monotone(dy: npt.NDArray) -> None:
   1849     if np.any(dy < 0):
-> 1850         raise ValueError(
   1851             "the degradation decreases over at least one interval, but a "
   1852             "Gamma process is monotone increasing. Use WienerProcess for "
   1853             "non-monotone / noisy signals."
   1854         )

ValueError: the degradation decreases over at least one interval, but a Gamma process is monotone increasing. Use WienerProcess for non-monotone / noisy signals.

An increment of exactly zero is allowed, but a gamma increment is never exactly zero, so it means the change was too small to register: it enters the likelihood as censored below the measurement resolution, \(P(\Delta W \le \delta)\). resolution sets \(\delta\); by default it is the smallest positive increment in the data, which for readings rounded to a grid is the grid step. Here the wear readings are rounded to the nearest 0.5, as a coarse gauge would give them:

y_gauge = np.round(y / 0.5) * 0.5
dy = np.diff(y_gauge)[np.diff(i) == 0]
print("zero increments:", int((dy == 0).sum()), "of", dy.size)
GammaProcess.fit(x, y_gauge, i, threshold=threshold)

zero increments: 137 of 960

Gamma Process Degradation Model
===============================
Shape rate (alpha)  : 4.23489
Rate (beta)         : 2.05419
Threshold           : 30
Mean time to failure: 14.67

The mean life, 14.7, stays close to the 15.3 of the unrounded readings, but the shape rate does not (4.2 against 3.0): rounding also coarsens every non-zero increment — a true 0.8 is read as 0.5 or 1.0 depending on where the path sat in its bins — and censoring the zeros does not undo that. If you know the gauge step, say so with gauge. Each reading then means only that the true level lies somewhere in the gauge bin around it ([r - 0.25, r + 0.25) here), and the likelihood of a unit is the probability that its path passes through all of its bins:

GammaProcess.fit(x, y_gauge, i, threshold=threshold, gauge=0.5)

Gamma Process Degradation Model
===============================
Shape rate (alpha)  : 3.08001
Rate (beta)         : 1.56166
Threshold           : 30
Mean time to failure: 15.3732

The shape rate is back at 3.08 against the 2.97 of the unrounded readings, and the mean life at 15.37 against 15.35. The coarser the gauge, the more this matters. With a step of 1.0 — the size of a typical increment — the censored fit more than doubles the shape rate and cuts the mean life from 15.3 to 12.6, while the quantised fit barely moves:

y_coarse = np.round(y / 1.0) * 1.0
coarse = {}
for label, kwargs in [("zeros censored", {}), ("gauge=1.0", {"gauge": 1.0})]:
    fit = coarse[label] = GammaProcess.fit(x, y_coarse, i, threshold=threshold,
                                           **kwargs)
    print(f"{label:15s} alpha {fit.alpha:.2f}  beta {fit.beta:.2f}  "
          f"mean life {fit.mean():.2f}")

zeros censored  alpha 7.42  beta 3.10  mean life 12.61

gauge=1.0       alpha 3.15  beta 1.60  mean life 15.35

A few details of the option:

• Rounded increments are not independent: two neighbouring increments share the rounding error of the reading between them. The default gauge_method="exact" therefore follows each unit’s path with a forward recursion over its readings (a fraction of a second for the 960 increments here). gauge_method="independent" multiplies the probabilities of the single rounded increments instead; it is several times faster and also nearly unbiased, but its estimates scatter more.

• rounding says how the gauge rounds: "nearest" (the default, bins [r - δ/2, r + δ/2)) or "floor" (bins [r, r + δ), a gauge that truncates). With every reading off the gauge only the differences between bins count, so the convention does not change the fit; it does when the first reading is exact — new units at exactly zero wear, as here — which you state with exact_start=True.

• gauge replaces resolution (the zeros are part of the model), and the differences between a unit’s readings must be whole multiples of it — an error otherwise usually means the step or its units are wrong. Stress Z works exactly as without a gauge.

• A gauge much coarser than the scatter a unit builds up over the whole test cannot tell a random path from a straight line; alpha and beta then grow large together, while their ratio and the mean life stay well estimated.

Choosing between Wiener and Gamma

The decision is almost always settled by one question: can your degradation physically decrease?

Your degradation paths…	Use	Because
fluctuate up and down (noisy sensor, wandering signal)	WienerProcess	Gaussian increments allow decreases and absorb measurement noise; failure time is a closed-form Inverse Gaussian.
only ever increase (wear, corrosion, crack growth, fatigue)	GammaProcess	non-negative increments enforce monotone, irreversible damage; forcing a Wiener fit would misread real jumps as noise.

A quick practical test: plot your paths. If they visibly dip, the Wiener process models that directly. If they are monotone, the Gamma process is the physically honest choice — and if you try to give monotone-only data that happens to dip (usually a measurement glitch) to the Gamma process, the error it raises is a useful signal in itself.

Compared with the general-path approach at the top of this page, both process models share two advantages: they handle irregular measurement spacing without any special treatment (each increment simply carries its own dt), and they give the failure-time distribution directly from the fitted process rather than through noisy per-unit pseudo failure times. The general-path models remain the better choice when each unit truly follows a smooth deterministic trend observed with error, or when you need a specific parametric path shape.

Accelerated and step-stress tests

Degradation at use conditions is often too slow to watch, so tests raise the stress. In a step-stress test the same units are held at one stress for a while, then stepped up, and up again — every unit sees several stresses, and each measurement interval ran at whatever stress was applied over it. Both WienerProcess and GammaProcess take that stress through Z: one row per measurement, giving the stress applied over the interval that ends at that measurement.

The model is an accelerated clock [WhitmoreSchenkelberg1997]. Stress z makes a unit age \(\mathrm{AF}(z) = \exp(\gamma^\top (z - z_{\text{ref}}))\) times faster than at the reference stress, so an interval dt at stress z contributes \(\mathrm{AF}(z)\,dt\) of operational time and the process runs on that clock. The process parameters describe degradation at the reference stress stress_ref (pass the use condition), and the new gamma coefficients describe how strongly stress speeds it up. With z = 1/T in kelvin this is Arrhenius, \(\gamma = -E_a/k\).

Here 40 units run for 300 hours: 100 hours at 50 °C, 100 at 75 °C, then 100 at 100 °C, with a true \(\gamma = -5000\) (an activation energy of about 0.43 eV), inspected every 5 hours. The use condition is 50 °C.

from surpyval import StepSchedule

rng = np.random.default_rng(2)
temps = np.array([323.0, 348.0, 373.0])  # kelvin
z_levels = 1 / temps
z_use = z_levels[0]
g_true, mu_true, sigma_true, threshold = -5000.0, 0.05, 0.12, 12.0

times = np.arange(5.0, 300.0 + 1e-9, 5.0)
z = np.select([times <= 100, times <= 200], z_levels[:2], z_levels[2])
af = np.exp(g_true * (z - z_use))

xs, ys, ids, Zs = [], [], [], []
for unit in range(40):
    dtau = af * 5.0  # operational time in each interval
    increments = rng.normal(mu_true * dtau, sigma_true * np.sqrt(dtau))
    xs.append(np.r_[0.0, times])
    ys.append(np.r_[0.0, np.cumsum(increments)])
    ids.append(np.full(times.size + 1, unit))
    Zs.append(np.r_[z_levels[0], z])
x, y, i, Z = (np.concatenate(a) for a in (xs, ys, ids, Zs))

model = WienerProcess.fit(x, y, i, threshold=threshold, Z=Z, stress_ref=[z_use])
model

Wiener Process Degradation Model
================================
Drift (mu)          : 0.0493938
Diffusion (sigma)   : 0.120502
Threshold           : 12
Stress coefficients : [-4946.184162]
Reference stress    : [0.003096]
Mean life (ref.)    : 242.946

The drift and diffusion are close to the 50 °C values (0.05 and 0.12), and the stress coefficient is close to -5000. The Mean life (ref.) line is the mean life at the reference stress. Every life method now needs a stress, passed as Z: a single row for a constant stress,

print("acceleration factor at 100 C :", round(model.acceleration_factor([z_levels[2]]), 1))
print("mean life at 50 C            :", round(model.mean(Z=[z_use]), 1))
print("mean life at 100 C           :", round(model.mean(Z=[z_levels[2]]), 1))

acceleration factor at 100 C : 7.8
mean life at 50 C            : 242.9
mean life at 100 C           : 31.2

or a StepSchedule for a stress that changes over time. Because stress only changes the speed of the clock, the life under a profile is still closed form: \(F(t) = F_0(\tau(t))\) with \(\tau\) the operational time. Here is the life of a fresh unit on the test profile itself, next to the life at the two ends of it:

profile = StepSchedule.from_changepoints([0, 100, 200], z_levels)

t = np.linspace(0, 300, 301)
plt.plot(t, model.ff(t, Z=[z_use]), label="constant 50 C")
plt.plot(t, model.ff(t, Z=profile), label="step profile")
plt.plot(t, model.ff(t, Z=[z_levels[2]]), label="constant 100 C")
plt.xlabel("Time (h)")
plt.ylabel("Probability of failure  F(t)")
plt.legend()

print("median life on the profile:", round(model.qf(0.5, Z=profile), 1), "h")

median life on the profile: 146.6 h

ff, sf, df, hf, qf, mean and random all take Z this way. For remaining life, Z is the stress from now on, and a schedule starts at time zero = now. A unit currently at degradation 6 that will run another 20 hours at 75 °C before going to 100 °C:

plan = StepSchedule.from_changepoints([0, 20], [[z_levels[1]], [z_levels[2]]])
rul = model.predict_rul(6.0, Z=plan)
print("median remaining life :", round(rul.rul, 1), "h")
print("95% interval          :", tuple(round(v, 1) for v in rul.rul_interval))

median remaining life : 27.5 h
95% interval          : (22.2, 35.7)

A few practical points:

• The same Z argument covers a constant-stress accelerated test, where each unit stays at one stress and different units run at different stresses. Either way, Z needs at least two distinct stress levels, or the stress coefficients cannot be estimated and the fit says so.

• Z can carry several stresses (e.g. [1/T, log V]); gamma then has one coefficient per column.

• GammaProcess works identically. Its alpha is the shape accrual at the reference stress (at stress z the shape accrues at alpha * AF(z)), and beta is the same at every stress.

• Unlike the general-path moments fit, no steps are needed: every unit shares the process parameters, so units at different constant stresses identify gamma on their own.

• For the Wiener process the stress scales the diffusion along with the drift. That is the assumption that makes the life closed form under any profile.

• A model fitted without Z is unchanged and refuses a Z argument. A model fitted with Z refuses to predict without one, because its life depends on the stress.

• WienerProcess.fit_from_df and GammaProcess.fit_from_df fit from the columns of a DataFrame and record the stress columns (Z_cols), so the model then also takes the stress as a one-row DataFrame, read by name.

• A missing (nan) time, probability or stress gives nan; predict_rul refuses a missing current degradation or stress, as it describes one unit.

Destructive degradation

Everything so far assumes each unit is measured repeatedly over time. In a destructive test the measurement destroys the specimen — you break a coupon to read its strength, or drive insulation to breakdown — so each unit yields exactly one (time, degradation) point. There are no per-unit paths to fit and extrapolate, so the pseudo-failure-time machinery above does not apply.

DestructiveDegradation instead models the population degradation distribution directly, as a location-scale regression whose location moves with a transform of time, \(Y \mid t \sim \mathrm{dist}(\text{loc} = \beta_0 + \beta_1\,\varphi(t), \ \sigma)\), and induces the lifetime distribution by crossing the failure threshold. In the example below strength decreases with age and a unit fails once it drops below D_f — the direction is inferred from the trend:

from surpyval import Normal
from surpyval.degradation import DestructiveDegradation

rng = np.random.default_rng(0)
n = 300
age = rng.uniform(0, 40, n)                      # one specimen per point
strength = 100.0 - 1.5 * age + rng.normal(0, 5.0, n)
D_f = 40.0                                       # failed below this strength

model = DestructiveDegradation.fit(
    age, strength, threshold=D_f, distribution=Normal,
)
model

Destructive Degradation Model
=============================
Response distribution : Normal
Time transform        : t
Direction             : decreasing
Threshold             : 40
Location              : 100.314 + -1.51347*t
Scale (sigma)         : 4.84724

The fitted model exposes the induced lifetime distribution at the threshold (sf / ff / Hf / df) and the fitted degradation distribution over time (degradation_quantile):

t = np.linspace(1, 50, 100)
plt.plot(t, model.sf(t), label='reliability S(t)')
plt.plot(t, model.degradation_quantile(0.5, t) / 100.0,
         '--', label='median strength (scaled)')
plt.axhline(D_f / 100.0, color='0.7', lw=1)
plt.legend()
plt.xlabel('Age')

Text(0.5, 0, 'Age')

The fitted location is model.beta (intercept and slope on \(\varphi(t)\)) and the scale model.sigma; model.direction records the direction used ("auto", the default, inferred "decreasing" here from the downward trend; pass direction= to set it).

The response distribution is LogNormal by default (a positive-valued measurement, whose scatter grows with its level); use Normal when the response can be negative. The time transform \(\varphi\) is "linear" by default — "log", "sqrt" and "reciprocal" are also available, and "best" fits all four and keeps the one with the lowest AICc, reporting every score in transform_scores. Because the fit goes through the distribution’s own likelihood, censored measurements — a strength below the test floor (left censored, c = -1), a specimen that did not break at the maximum load (right censored, c = 1) — are passed through the ordinary c argument, recorded at the bound. Here the strength decays exponentially (so its log is linear in age: the LogNormal default with the linear transform), the rig cannot read below 45, and a unit has failed below 50; cb gives bootstrap confidence bounds on the induced lifetime by resampling specimens and refitting:

rng = np.random.default_rng(4)
age = rng.uniform(1, 40, 200)
strength = 100.0 * np.exp(-0.02 * age + rng.normal(0, 0.08, age.size))
floor = 45.0                                  # the rig cannot read below 45
c = np.where(strength < floor, -1, 0)         # -1: left censored at the floor
reading = np.maximum(strength, floor)

best = DestructiveDegradation.fit(age, reading, threshold=50.0, c=c,
                                  transform="best")
print({name: round(score, 1) for name, score in best.transform_scores.items()})
print("selected transform        :", best.transform, "  censored:", (c == -1).sum())
print("location, scale           :", best.beta.round(4), round(best.sigma, 4))
print("median strength at 10, 40 :", best.median_degradation([10.0, 40.0]).round(1))
print("reliability at 25, 35, 45 :", best.sf([25.0, 35.0, 45.0]).round(3))
best.cb([25.0, 35.0, 45.0], n_boot=50, random_state=0)

{'linear': 1205.5, 'log': 1341.9, 'sqrt': 1247.0, 'reciprocal': 1514.5}
selected transform        : linear   censored: 9
location, scale           : [ 4.5847 -0.019 ] 0.0814
median strength at 10, 40 : [81.1 45.9]
reliability at 25, 35, 45 : [0.993 0.546 0.013]

array([[0.98867236, 0.99716825],
       [0.4678182 , 0.61136844],
       [0.00409761, 0.03339123]])

The linear transform wins, as simulated; the location recovers \(\log 100 \approx 4.61\) and the slope \(-0.02\) closely, and the median life, where the median strength falls to 50, is at about \(\ln 2 / 0.02 \approx 35\). median_degradation(x) is the degradation_quantile(0.5, x) of the fitted measurement distribution.

Saving and loading a fitted model

Every fitted degradation model can be serialised to a plain, JSON-safe dictionary with to_dict and rebuilt with its class’s from_dict — the general-path DegradationModel, the stochastic-process WienerProcessModel / GammaProcessModel, the destructive DestructiveDegradationModel, and the InducedFailureDistribution — or with the package-level surpyval.from_dict, which dispatches on the stored model type:

import surpyval
from surpyval.degradation import DegradationAnalysis, DegradationModel

saveable = DegradationAnalysis.fit(
    np.tile(np.arange(100, 1100, 100), 4),
    10 + np.repeat([0.31, 0.28, 0.44, 0.37], 10)
    * np.tile(np.arange(100, 1100, 100), 4),
    np.repeat([1, 2, 3, 4], 10),
    threshold=150,
)
reloaded = DegradationModel.from_dict(saveable.to_dict())
grid = np.array([300.0, 450.0, 600.0])
print("match:", np.allclose(saveable.sf(grid), reloaded.sf(grid)))
print("dispatched:", type(surpyval.from_dict(saveable.to_dict())).__name__)

match: True
dispatched: DegradationModel

DegradationModel stores its raw data and everything fitted from it — the path parameters, the population, the pseudo failure times, the life model (plain or accelerated, through its own serialisation), and for accelerated models the stresses, links fixed effects or the clock’s gamma and stress_ref — so every prediction method works on the reloaded model, including the bootstrap confidence bound. That bound reruns the whole fit on resampled units; the fitter it reruns (the lifetime distribution, or for an accelerated model the regression fitter such as WeibullPH or AFT(Weibull)) is recovered from the restored life model, so with the same random_state the reloaded model reproduces the original’s band exactly:

band_saved = saveable.cb(grid, method="bootstrap", n_boot=50, random_state=1)
band_reloaded = reloaded.cb(grid, method="bootstrap", n_boot=50, random_state=1)
print(band_saved.round(3))
print(band_reloaded.round(3))

[[0.83  1.   ]
 [0.014 0.837]
 [0.    0.002]]
[[0.83  1.   ]
 [0.014 0.837]
 [0.    0.002]]

Every one of these models also has to_json(path) and from_json(path) for writing a file directly (surpyval.from_json reads any of them). The destructive model stores its specimens as well, so a reloaded one reproduces its bootstrap bounds in the same way:

from surpyval.degradation import DestructiveDegradationModel

reloaded_destructive = DestructiveDegradationModel.from_dict(best.to_dict())
print(np.allclose(best.cb([25.0, 35.0], n_boot=20, random_state=2),
                  reloaded_destructive.cb([25.0, 35.0], n_boot=20,
                                          random_state=2)))

True

One limit: the path model is stored by its name (the path= string, such as "offset-exponential") and resolved among the built-in ones, so a model fitted with a custom PathModel subclass (like the square-root path above) cannot be rebuilt.
